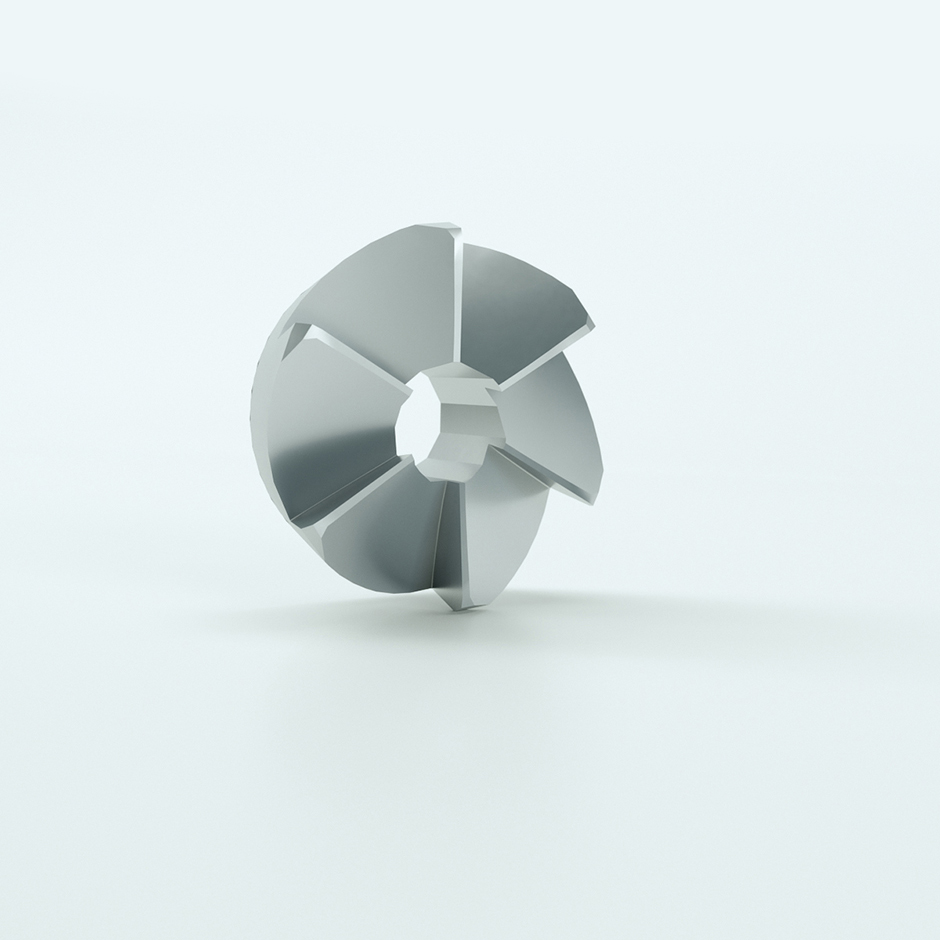

NWP 663 Backspot Facing Cutter Series, Designed for use in tight restricted areas where conventional machining methods cannot be employed, precision ground with a protective corner radius and accurate back taper clearance guarantees good surface finishes and free cutting ability.
| Product Code | NWP663 |
| Application | Milling |
| Material Suitability | Aluminium, Steel |
| Product Code Standard | Ref No | A¯ | B¯ | C¯ | D¯ | E¯ | F Rad | G Rad | H | Arbour NWP 663A | Hole Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NWP663 Ref 1s | 1s | 0.150"s | 0.562"s | 3/32"s | 7/16"s | 5/32"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 1 & 2s | 3/16"s |
| NWP663 Ref 2s | 2s | 0.200"s | 0.688"s | 3/32"s | 1/2"s | 3/16"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 3 & 4s | 1/4"s |
| NWP663 Ref 3s | 3s | 0.250"s | 0.750"s | 3/32"s | 1/2"s | 3/16"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 5 &6s | 5/16"s |
| NWP663 Ref 4s | 4s | 0.300"s | 0.875"s | 1/8"s | 1/2"s | 3/16"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 7 & 8s | 3/8"s |
| NWP663 Ref 5s | 5s | 0.400"s | 0.938"s | 1/8"s | 9/16"s | 7/32"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 9 & 10s | 7/16"s |
| NWP663 Ref 6s | 6s | 0.450"s | 1.062"s | 1/8"s | 9/16"s | 7/32"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 11 & 12s | 1/2"s |
| NWP663 Ref 7s | 7s | 0.500"s | 1.250"s | 1/8"s | 9/16"s | 7/32"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 13 & 14s | 9/16"s |
| NWP663 Ref 8s | 8s | 0.600"s | t.375"s | 1/8"s | 9/16"s | 7/32"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 15 & 16s | 5/8"s |
| NWP663 Ref 9s | 9s | 0.700"s | 1.562"s | !/8"s | 5/8"s | 1/4"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 17 & 18s | 3/4"s |
| NWP663 Ref 10s | 10s | 0.800"s | 1.938"s | 5/32"s | 5/8"s | 1/4"s | 0.060"s | 0.04s | 12¡-15¡s | REFS 19 & 20s | 7/8"s |
Please fill out your custom requirements if they are not listed above , one of our team will then get in touch with you.
NWP 663 Backspot Facing Cutter Series, Designed for use in tight restricted areas where conventional machining methods cannot be employed, precision ground with a protective corner radius and accurate back taper clearance guarantees good surface finishes and free cutting ability.
