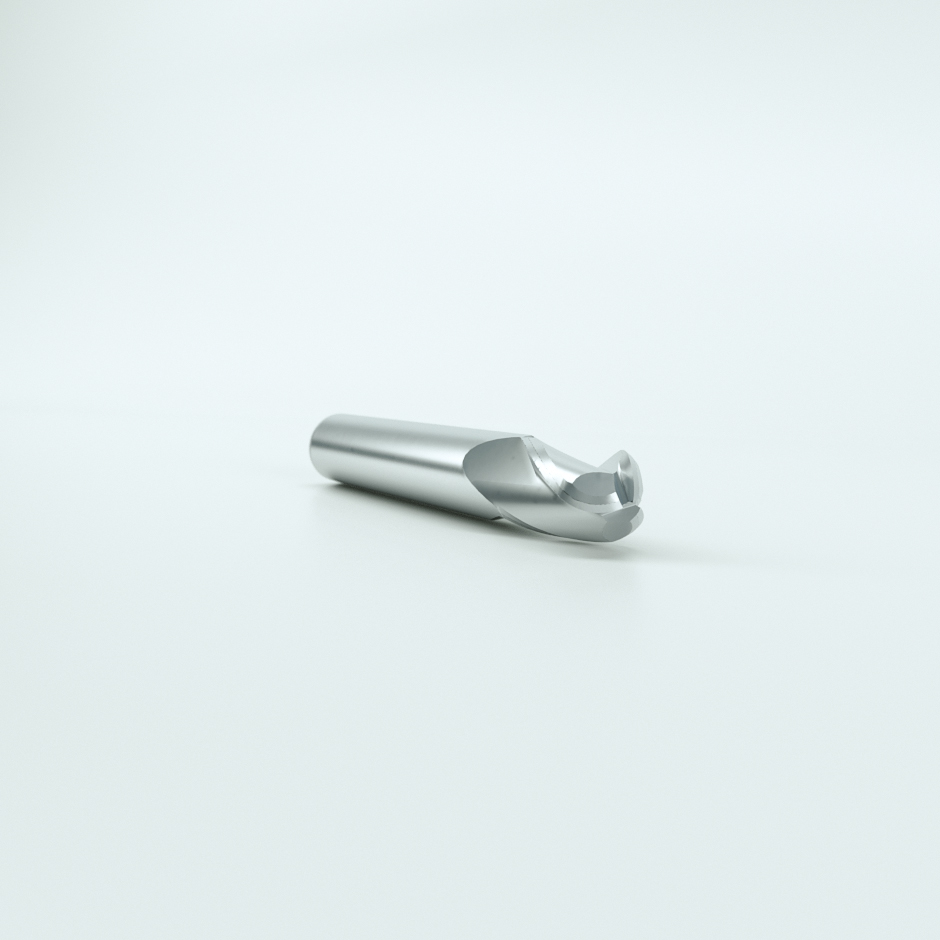

Universal 3 Flute Solid Carbide Ballnose End Mill SeriesUNi 3F Ballnose Solid Carbide Endmill Range,Designed for general milling applications where high metal removal rates are required and tool stability while cutting,An all-round cost effective tooling solution
| Product Code | UNi3BN |
| Application | Milling |
| Material Suitability | Steel, Titanium |

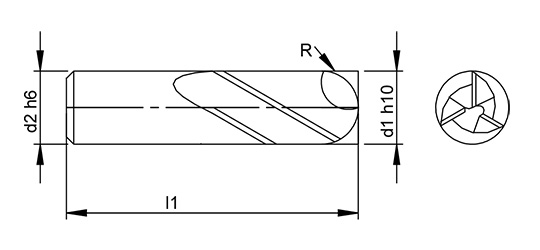

| d1 h10 | d2 | l1 | l2 | Z | R | Product Code Standard | Product Code Weldon Flat |
|---|---|---|---|---|---|---|---|
| 4s | 6.00s | 57.00s | 11.00s | 3s | 2s | UNI3BN-4.00s | UNI3BN-W-4.00s |
| 6s | 6.00s | 57.00s | 13.00s | 3s | 3s | UNI3BN-6.00s | UNI3BN-W-6.00s |
| 8s | 8.00s | 63.00s | 19.00s | 3s | 4s | UNI3BN-8.00s | UNI3BN-W-8.00s |
| 10s | 10.00s | 72.00s | 22.00s | 3s | 5s | UNI3BN-10.00s | UNI3BN-W-10.00s |
| 12s | 12.00s | 83.00s | 26.00s | 3s | 6s | UNI3BN-12.00s | UNI3BN-W-12.00s |
| 16s | 16.00s | 92.00s | 32.00s | 3s | 8s | UNI3BN-16.00s | UNI3BN-W-16.00s |
| 20s | 20.00s | 104.00s | 38.00s | 3s | 10s | UNI3BN-20.00s | UNI3BN-W-20.00s |
| 25s | 25.00s | 115.00s | 50.00s | 3s | 12.5s | UNI3BN-25.00s | UNI3BN-W-25.00s |
Please fill out your custom requirements if they are not listed above , one of our team will then get in touch with you.
