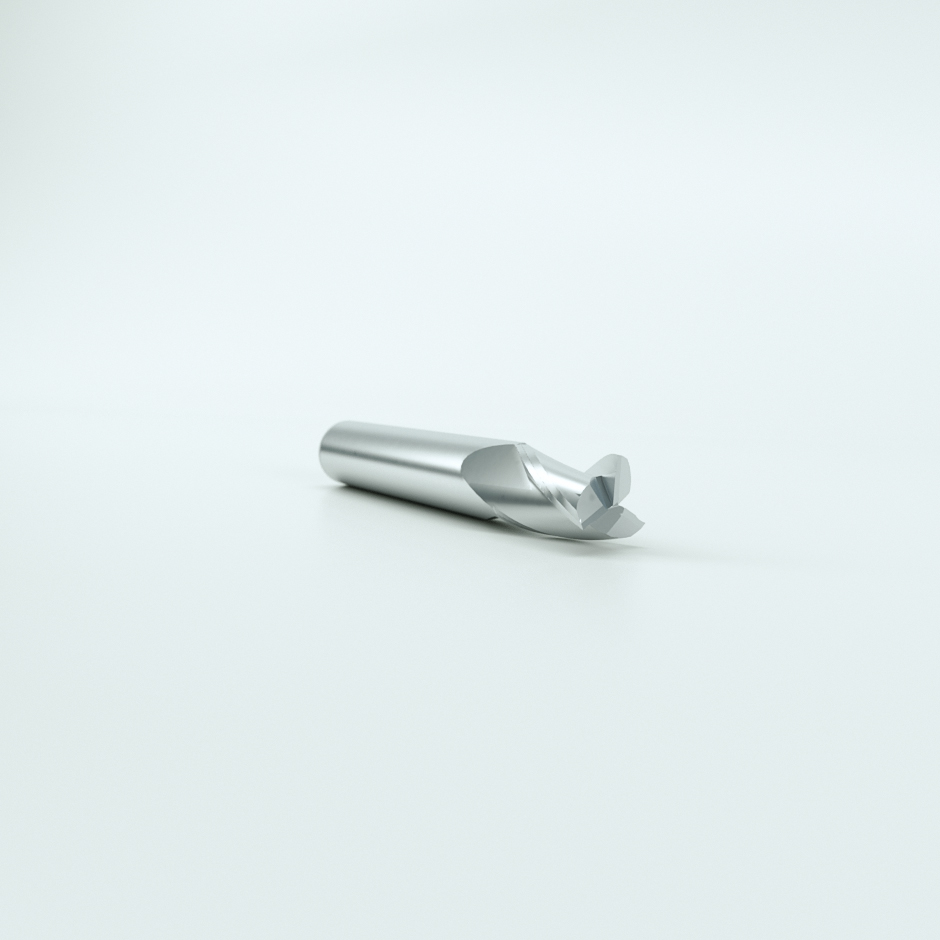

Universal 3 Flute Solid Carbide Square Corner End Mill Short Series,Uni 3F short Square Corner Solid Carbide Endmill Range,Designed for general milling applications where high metal removal rates are required and tool stability while cutting,An all-round cost effective tooling solution
| Product Code | UNi3S |
| Application | Milling |
| Material Suitability | Steel, Aluminium |

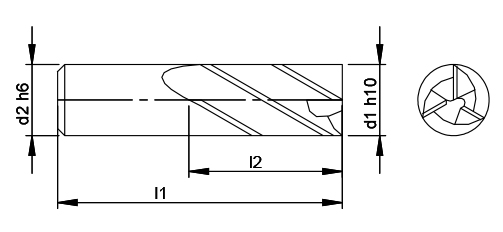

| d1 h10 | d2 | l1 | l2 | Z | Product Code Standard | Product Code Weldon Flat |
|---|---|---|---|---|---|---|
| 4s | 6.00s | 40.00s | 7.00s | 3s | Uni 3S-4.00s | Uni 3S-W-4.00s |
| 6s | 6.00s | 40.00s | 8.00s | 3s | Uni 3S-6.00s | Uni 3S-W-6.00s |
| 8s | 8.00s | 43.00s | 11.00s | 3s | Uni 3S-8.00s | Uni 3S-W-8.00s |
| 10s | 10.00s | 50.00s | 13.00s | 3s | Uni 3S-10.00s | Uni 3S-W-10.00s |
| 12s | 12.00s | 55.00s | 15.00s | 3s | Uni 3S-12.00s | Uni 3S-W-12.00s |
| 16s | 16.00s | 62.00s | 18.00s | 3s | Uni 3S-16.00s | Uni 3S-W-16.00s |
| 20s | 20.00s | 75.00s | 22.00s | 3s | Uni 3S-20.00s | Uni 3S-W-20.00s |
| 25s | 25.00s | 100.00s | 25.00s | 3s | Uni 3S-25.00s | Uni 3S-W-25.00s |
Please fill out your custom requirements if they are not listed above , one of our team will then get in touch with you.
