Universal 4 Flute Solid Carbide Chamfer End Mill Series,UNi 4 Flute Solid Carbide Chamfer Endmill Range,Designed for general milling applications where high metal removal rates are required and tool stability while cutting.An all-round cost effective tooling solution
| Product Code | Uni4NWP |
| Application | Milling |
| Material Suitability | Steel, Titanium |

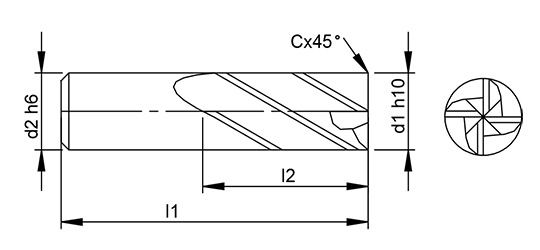

| d1 h10 | d2 | l1 | l2 | Z | Cx45¡ | Product Code Standard | Product Code Weldon Flat |
|---|---|---|---|---|---|---|---|
| 4s | 6.00s | 57.00s | 11.00s | 4s | 0.1s | UNI44.00s | UNI4-W-4.00s |
| 6s | 6.00s | 57.00s | 13.00s | 4s | 0.15s | UNI4-6.00s | UNI4-W-6.00s |
| 8s | 8.00s | 63.00s | 19.00s | 4s | 0.15s | UNI4-8.00s | UNI4-W-8.00s |
| 10s | 10.00s | 72.00s | 22.00s | 4s | 0.2s | UNI4-10.00s | UNI4-W-10.00s |
| 12s | 12.00s | 83.00s | 26.00s | 4s | 0.25s | UNI4-12.00s | UNI4-W-12.00s |
| 16s | 16.00s | 92.00s | 32.00s | 4s | 0.35s | UNI4-16.00s | UNI4-W-16.00s |
| 20s | 20.00s | 104.00s | 38.00s | 4s | 0.4s | UNI4-20.00s | UNI4-W-20.00s |
| 25s | 25.00s | 115.00s | 50.00s | 4s | 0.5s | UNI4-25.00s | UNI4-W-25.00s |
Please fill out your custom requirements if they are not listed above , one of our team will then get in touch with you.
