High Performance 2 Flute Solid Carbide 3 XD Drill Range, EDV`s HPD 2 Flue Solid Carbide Drill Range,Designed for general drilling applications,the high flute pitch enables smooth material evacuation, this gives the drill strong ridigity and makes the tool stable when in cut
| Product Code | HPD2 3xD |
| Application | Drilling |
| Material Suitability | Steel |

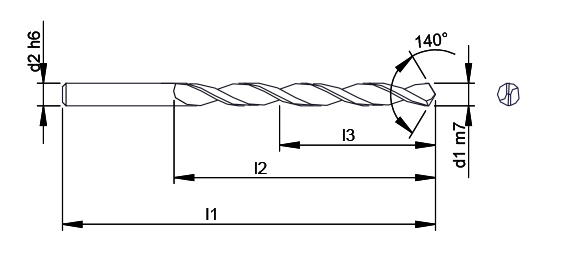

| d1 m7 | d2 | l1 | l2 | l3 | Product Code Standard |
|---|---|---|---|---|---|
| 3s | 6.00s | 62.00s | 22.00s | 14s | HPD2x3-3.00s |
| 3.5s | 6.00s | 62.00s | 22.00s | 14s | HPD2x3-3.50s |
| 4s | 6.00s | 66.00s | 26.00s | 14s | HPD2x3-4.00s |
| 4.5s | 6.00s | 66.00s | 26.00s | 17s | HPD2x3-4.50s |
| 5s | 6.00s | 66.00s | 30.00s | 20s | HPD2x3-5.00s |
| 5.5s | 6.00s | 66.00s | 30.00s | 20s | HPD2x3-5.50s |
| 6s | 6.00s | 66.00s | 30.00s | 20s | HPD2x3-6.00s |
| 6.5s | 8.00s | 79.00s | 38.00s | 24s | HPD2x3-6.50s |
| 7s | 8.00s | 79.00s | 38.00s | 24s | HPD2x3-7.00s |
| 7.5s | 8.00s | 79.00s | 42.00s | 29s | HPD2x3-7.50s |
Please fill out your custom requirements if they are not listed above , one of our team will then get in touch with you.
