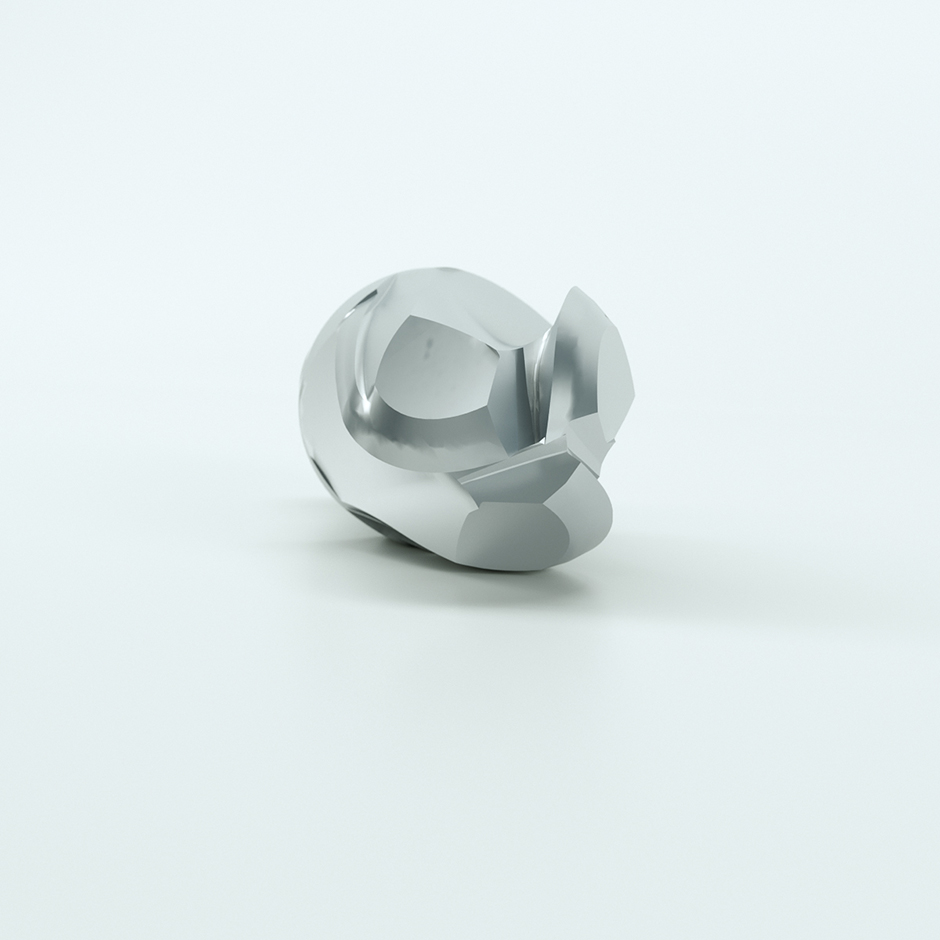

3 Flute Replaceable Head End Mill Ballnose Series,Replaceable Head 3F Ballnosed Solid Carbide Endmill Range,Designed to meet all the requirements required from a high precision replaceable head system, matched optimal cutting geometries and material substrates, a high accuracy connection is critical to the performance, our connection guarantees ultra high radial run-out precision and accuracy and minimal handling requirements, while offering performance and extended tool life and precision.
| Product Code | RH3BN |
| Application | Milling |
| Material Suitability | Steel, Titanium |

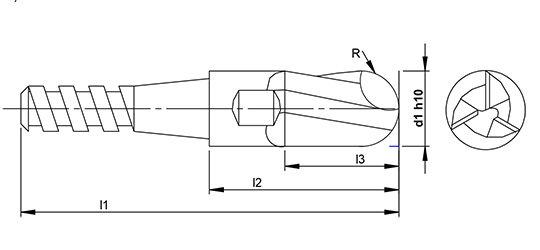

| d1 h10 | Connection Size CS | l1 | l2 | l3 | Z | R | Product Code Standard |
|---|---|---|---|---|---|---|---|
| 8s | 6s | 20.40s | 11.00s | 6s | 3s | 4s | RH3BN-8.0s |
| 10s | 8s | 26.60s | 13.00s | 7.5s | 3s | 5s | RH3BN-10.0s |
| 12s | 10s | 30.10s | 16.00s | 9s | 3s | 6s | RH3BN-12.0s |
| 16s | 12s | 37.30s | 20.00s | 12s | 3s | 8s | RH3BN-16.0s |
| 20s | 16s | 47.20s | 25.00s | 15s | 3s | 10s | RH3BN-20.0s |
| 25s | 20s | 58.00s | 32.20s | 19s | 3s | 12.5s | RH3BN-25.0s |
Please fill out your custom requirements if they are not listed above , one of our team will then get in touch with you.
